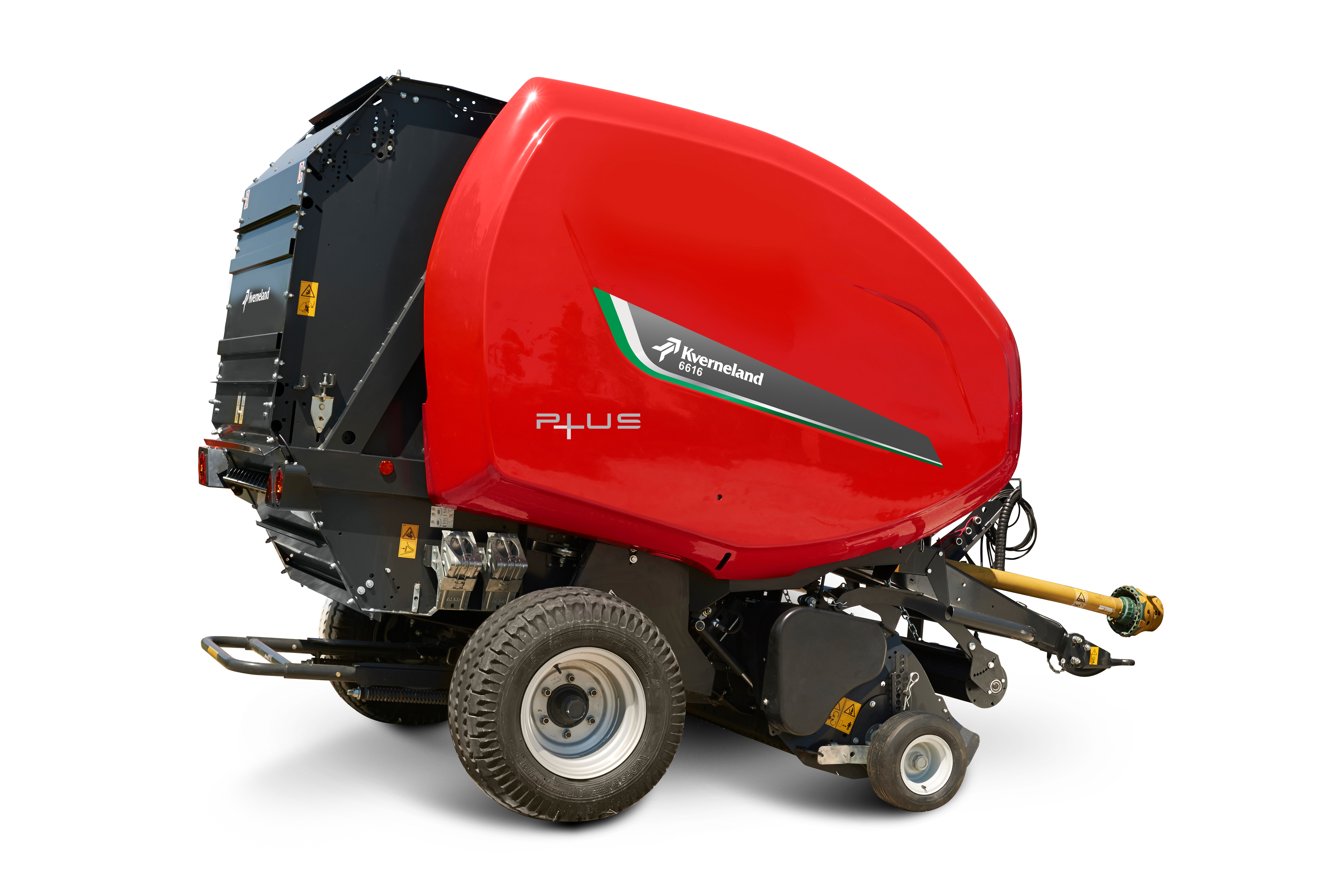

Kverneland 6616 – 6618 Plus

Ekonomický rad lisov na lisovanie balíkov s priemerom od 0,8 do 1,65 m.

Ekonomický rad lisov Kverneland 6600 Plus je vhodný na lisovanie suchej hmoty sena a slamy s priemerom od 0,8 až do 1,75 m. Balíky vyrobené Kverneland lismi radu 6600 disponujú konzistentnou veľkosťou a veľmi vysokou hustotou zlisovania lisovanej hmoty. Lisovacie tlaky v lisovacej komore sú prednastavené tak, aby vytvárali hutné balíky s mäkkým jadrom. Nastavenie tlaku je možné vykonať aj ručne, podľa individuálnych požiadaviek.

Kombinácia piatich pásov a troch valčekov vytvára hutné balíky s mäkkým jadrom a umožňuje ľahké začatie výroby balíka.

Lisy na balíky Kverneland radu 6600 a 6700 sú vybavené inovatívnym systémom balenia do siete PowerBind namontovaným v prednej časti stroja. Technológia PowerBind zaisťuje rýchle, spoľahlivé a presné balenie do siete.

  • Zberacie ústrojenstvo so šírkou 2,2 m
  • Paralelogramový systém Drop Floor pre rýchlejšie uvoľnenie
  • Jednoduché a intuitívne ovládanie pomocou terminálu Focus 3

Technické údaje:

  Priemer balíka Plnenie komory Viazanie
6616 Plus F 1,20 x 0,8 - 1,65 m Feeder Fork Sieť, sieť a špagát
6616 Plus FD 1,20 x 0,8 - 1,65 m DuoFeed Sieť, sieť a špagát
6616 Plus R 1,20 x 0,8 - 1,65 m PowerFeed rotor Sieť, sieť a špagát
6618 Plus F 1,20 x 0,8 - 1,75 m Feeder Fork Sieť, sieť a špagát
6618 Plus FD 1,20 x 0,8 - 1,75 m DuoFeed Sieť, sieť a špagát
6618 Plus R 1,20 x 0,8 - 1,75 m PowerFeed rotor Sieť, sieť a špagát


  • 2.0 or 2.2m pick-up with small diameter pick-up reel for fast and efficient throughput.
  • Pick-up with 4 or 5 rows of tines respectively.
  • Twin cam tracks on the 2.2m wide pick-up.
  • Tine bars with two central supports on the 2.2m wide pick-up.
  • Small diameter pick-up design.
  • Roller crop press is standard on the 2.2m wide pick-up.
  • Narrow transport width.

Intake System

PowerFeed Rotor Intake

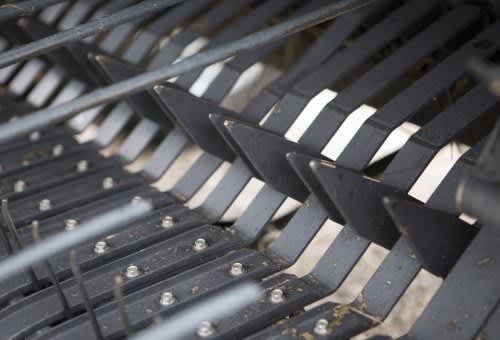

  • Truly impressive intake capacity can be achieved with the PowerFeed rotor intake system - handling all crop types with ease, whatever the conditions.
  • The PowerFeed rotor with its 13 rotor fingers proactively forces the material into the bale chamber for higher intake speed and capacity proving instant bale start


Single or Dual Fork Feeder

  • The fork feeder versions are fitted with a cost efficient fork feeder intake system. This system provides direct feed into the bale chamber, and the wide opening allows almost unrestricted intake capacity for fast and efficient bale start.
  • In addition the fork feeder gives less vibration and reduced power consumption.
  • The fork feeder is provided with a crop press above the pick-up that ensures a regular crop flow even from large bulky swaths.
  • Dual fork feeder with double feed tines ensures even higher capacity, while still safeguarding fragile crop types.

PowerBind Net Wrap

  • One of the fastest net wrap actions available. This means minimum downtime and maximum time baling.
  • The net is fed directly into the bale chamber by an injection arm in a flat movement angle to keep the net tight at all times.
  • Accurate and extremely reliable net injection.
  • No interference from external factors such as wind and crop.
  • When the bale is 90% complete the injection arm moves forward, ready for the net injection. No time is spent picking up the net.
  • Very low loading height, for maximum convenience and time saving. To replace the empty roll just swing out the shaft and replace it with a new roll
  • The PowerBind net wrap system allows the net to extend past the edge of the bale.

Parallelogram DropFloor system for easy unblocking

  • Parallelogram Drop Floor enables the operator to clear blockages easily from the tractor cab without any crop loss.
  • Drop the floor to free the rotor of blockage, engage the PTO to feed the blockage through and close the floor to continue baling

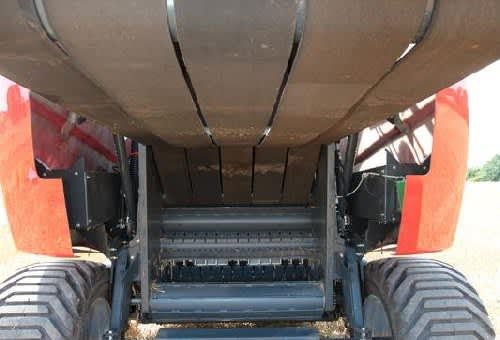

The Bale Chamber Concept

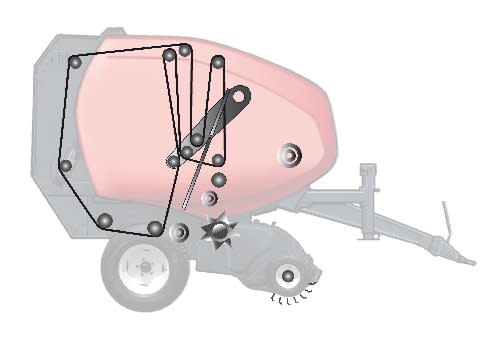

  • The Kverneland 6600 bale chamber offers a combination of 2 rollers and 5 wide laced belts.
  • This mixed chamber ensures a smooth bale start whatever the intake system, offering smooth bale rotation and reduced crop loss, even in dry conditions.
  • The two aggressive front rollers that come in contact with the crop are constantly cleaned by scraper rollers and are designed to perform well in all conditions. They ensure instant and efficient bale start with every type of crop.

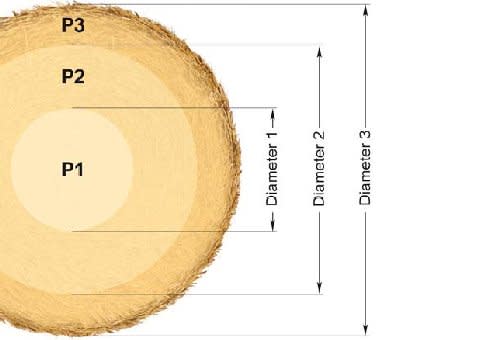

  • The small pre-chamber at the start of the bale formation ensures well-shaped and dense bales with a moderate core and tight outer layers.
  • As the bale grows, the belt tensioning arm is subjected to steadily increasing resistance from two hydraulic cylinders and a spring tensioner.
  • So as the bale diameter grows, so does the bale’s density. The result is a very firm bale with a moderate core.

TechnoPack (option)

Techno-Pack has been developed to offer professional farmers and contractors the optimum solution in terms of crop harvesting management. The moisture level of crop entering the bale chamber during the baling process is continuously measured and displayed on the baler terminal. Sensor plates are mounted in the lower part of the bale chamber, from which the system calculates the percentage of moisture inside the bale. The system is able to detect moisture levels up to 50% allowing the driver to decide at any time if crops such as hay or straw are fit to bale - your assurance of always preserving the best possible forage quality.

Focus 3 Control Terminal

Kverneland Group Mechatronics has recently launched a new operator terminal, the Focus 3. This terminal is developed for specific implement types and will only be delivered as package for those implements, together with the electronics for balers. The terminal Focus 3 is positioned in the market as an economy solution.

  • The Focus 3  terminal is easy to learn and very intuitive, with control terminal with focus on functionality and operating simplicity.
  • The Focus 3  terminal is a universal control terminal which can also be used with other implements from the Kverneland Group.
  • The Focus 3  terminal gives you full control of all functions from the tractor cab. They are shown on a large, clear digital display.
  • The Focus 3  terminal monitors and controls all necessary functions with all relevant parameters are visible at a glance.The control box is also driving the binding automatically without any intervention from the operator.
